ZOII Gel Sealed Modular AC SPD | Cost Effective Replacement

Poles: 1P/2P/3P

Voltage: 275V AC / 385V AC

Nominal Discharge Current In: 20kA (34S specification)

Maximum Discharge Current Imax: 40kA (34S specification)

Optional current ratings: 14D (5kA/10kA), 20D (5kA/10kA), 25D (10kA/20kA), 34S (20kA/40kA)

Voltage Protection Level Up: ≤1.5kV (275V) / ≤2.0kV (385V)

Protection Rating: IP20

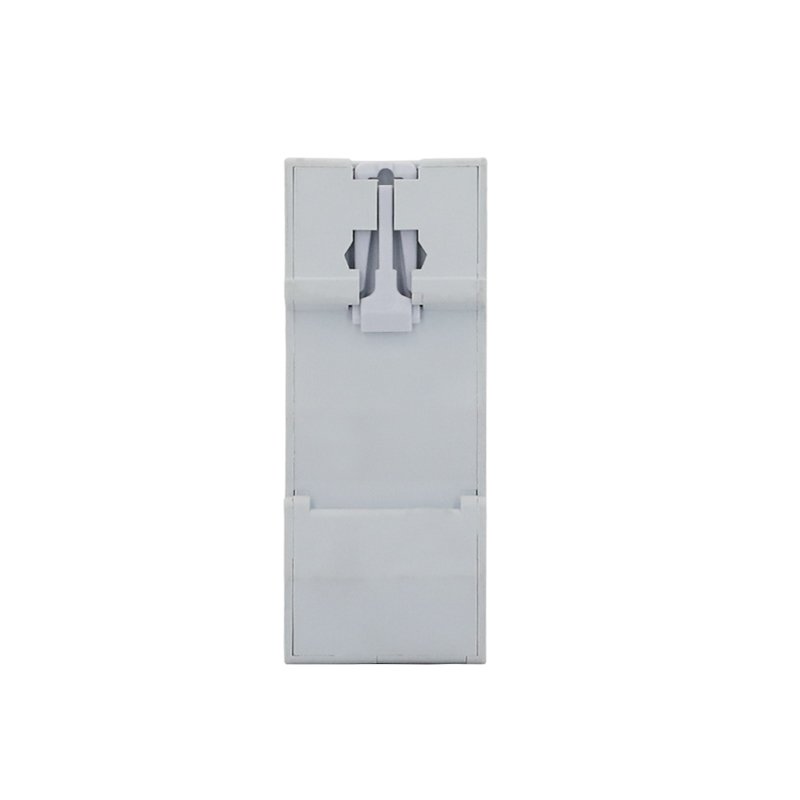

Installation: 35mm DIN rail

Standards: CE

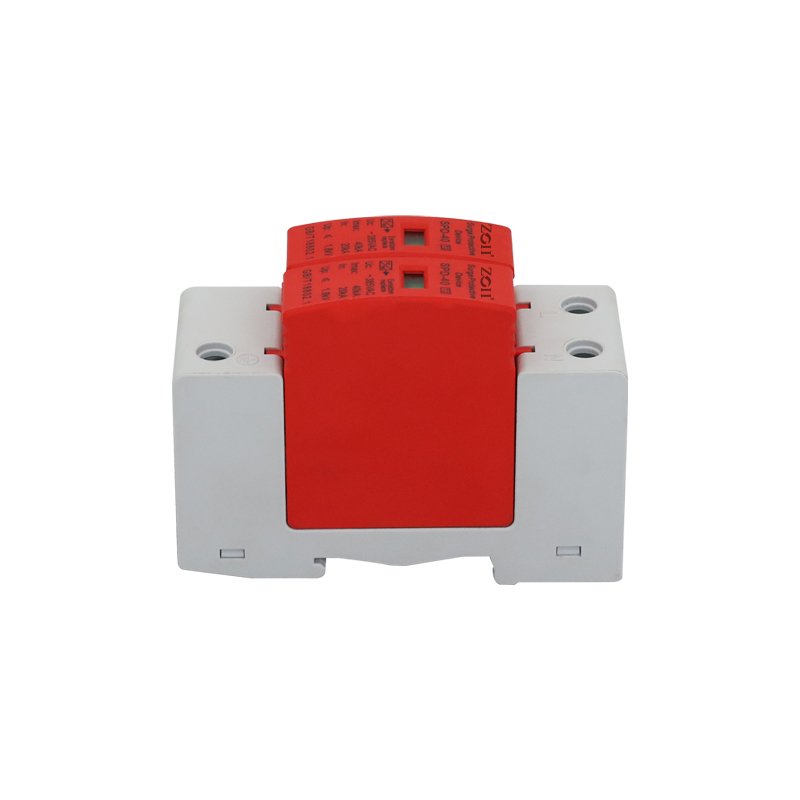

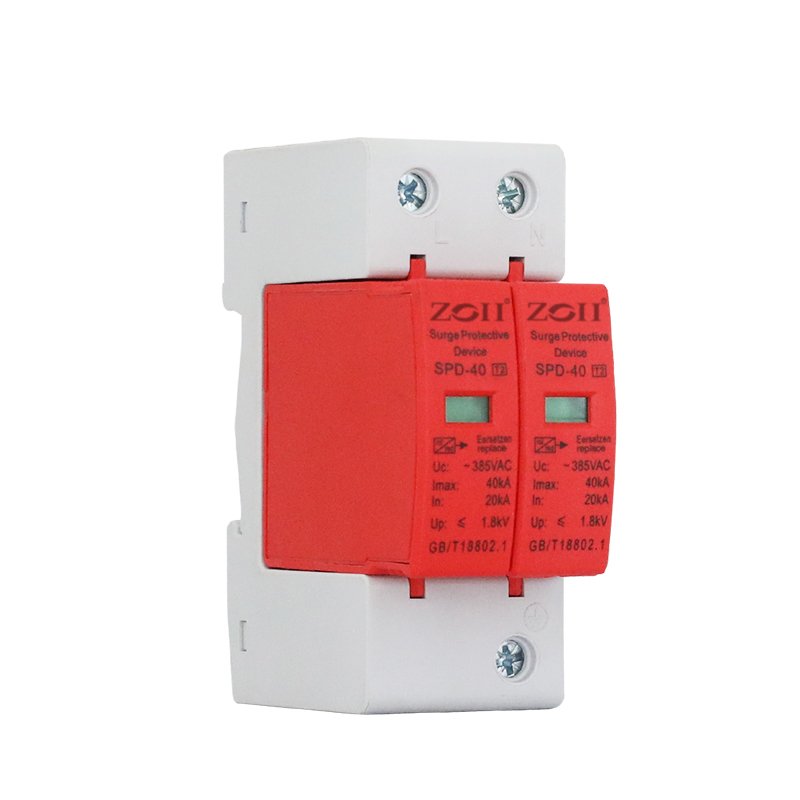

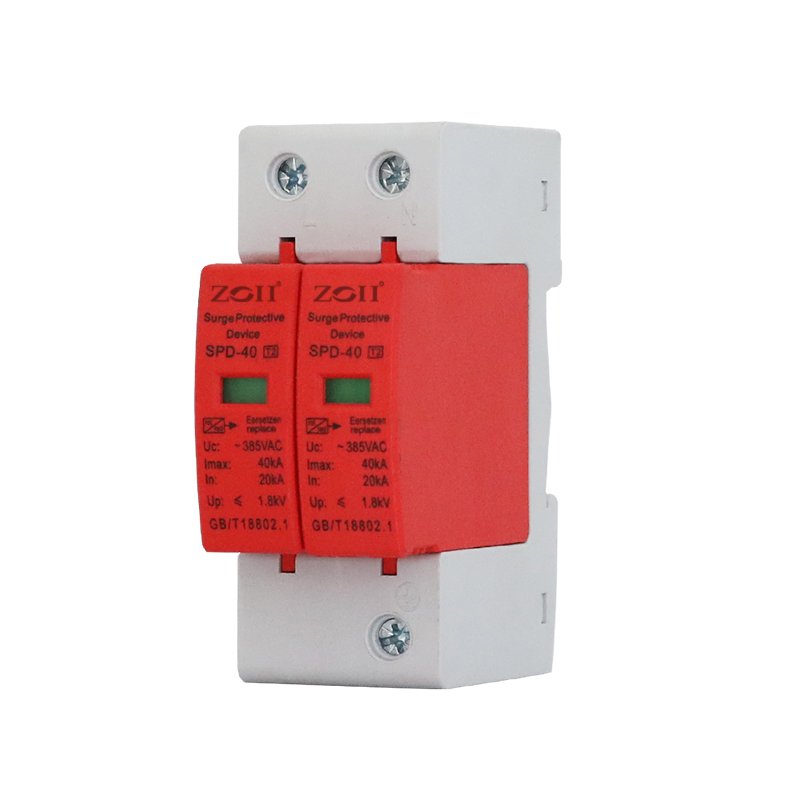

ZOII ZY2-O series gel encapsulation AC surge protective device adopts separated base structure, exposed slot design, module plug-in is intuitive and visible, replacement operation is convenient. The product adopts gel encapsulation process to seal chips, with excellent moisture and corrosion resistance, adapts to humid and harsh industrial environments. Built-in thermal trip protection, cuts off on overheating, stable surge protection performance. All models are CE certified, compatible with mainstream industrial SPD standard mounting dimensions, can be directly replaced and installed without rewiring, widest range of optional current ratings, competitive pricing, it is a cost-effective choice for industrial AC power distribution replacement scenarios.

Q1: What is gel encapsulation and why does it matter?

A: Gel encapsulation is a process that seals the MOV chips with a special gel compound, providing excellent protection against moisture, dust, and corrosion. This makes ZY2-O series SPDs particularly suitable for humid industrial environments, outdoor PV stations, and coastal areas where traditional SPDs may fail prematurely.

Q2: What current ratings are available for ZY2-O series?

A: ZY2-O series offers the widest range of current ratings: 14D (5kA/10kA), 20D (5kA/10kA), 25D (10kA/20kA), and 34S (20kA/40kA). This allows you to select the most cost-effective option based on your specific surge risk assessment and budget.Please make sure to select the appropriate components according to your actual needs. Operating beyond the marked current and voltage ranges will render the product unusable.

Q3: What colors are available for ZY2-O series?

A: ZY2-O series comes in 3 standard colors: white, orange, and red. Custom colors are available for large orders.
