ZOII Concealed Slot Type 2 AC SPD | High End Industrial

Poles: 1P/2P/3P

Voltage: 275V AC / 385V AC

Nominal Discharge Current In: 20kA (34S specification)

Maximum Discharge Current Imax: 40kA (34S specification)

Optional current ratings: 20D (5kA/10kA), 25D (10kA/20kA), 34S (20kA/40kA)

Voltage Protection Level Up: ≤1.5kV (275V) / ≤2.0kV (385V) Protection

Rating: IP20

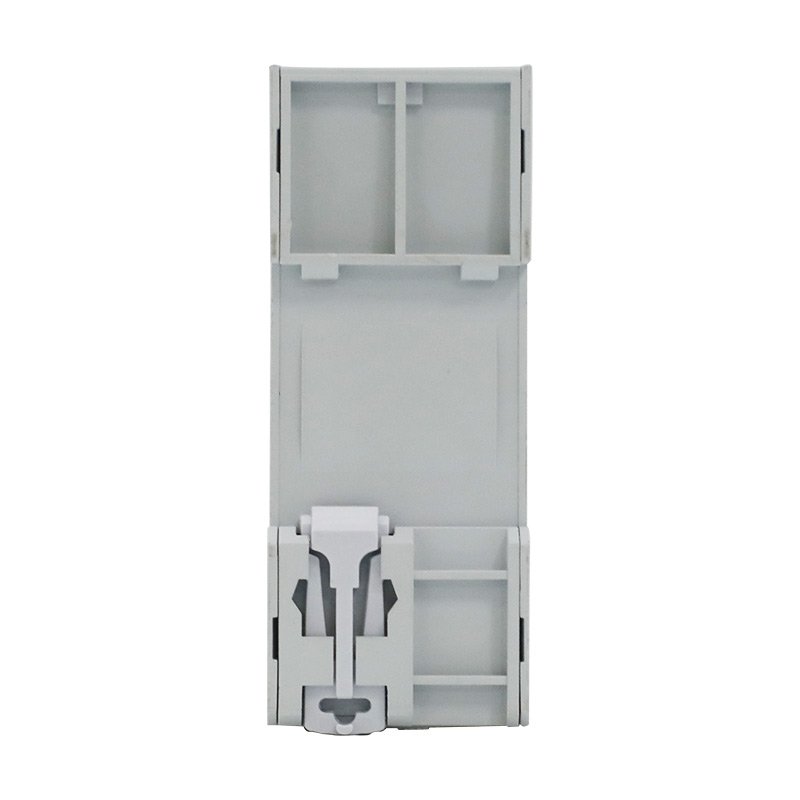

Installation: 35mm DIN rail

Standards: CE

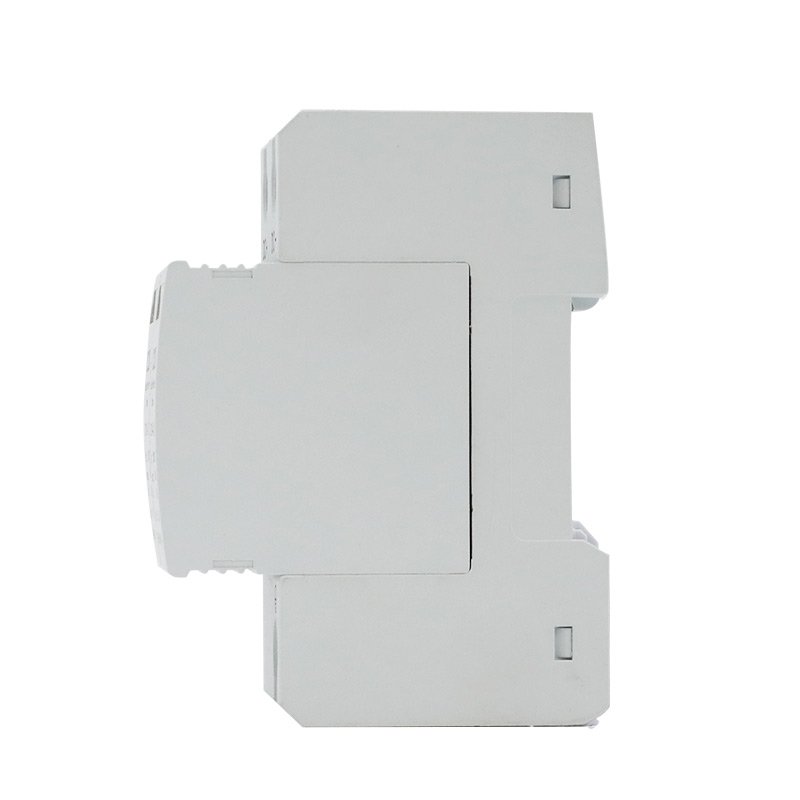

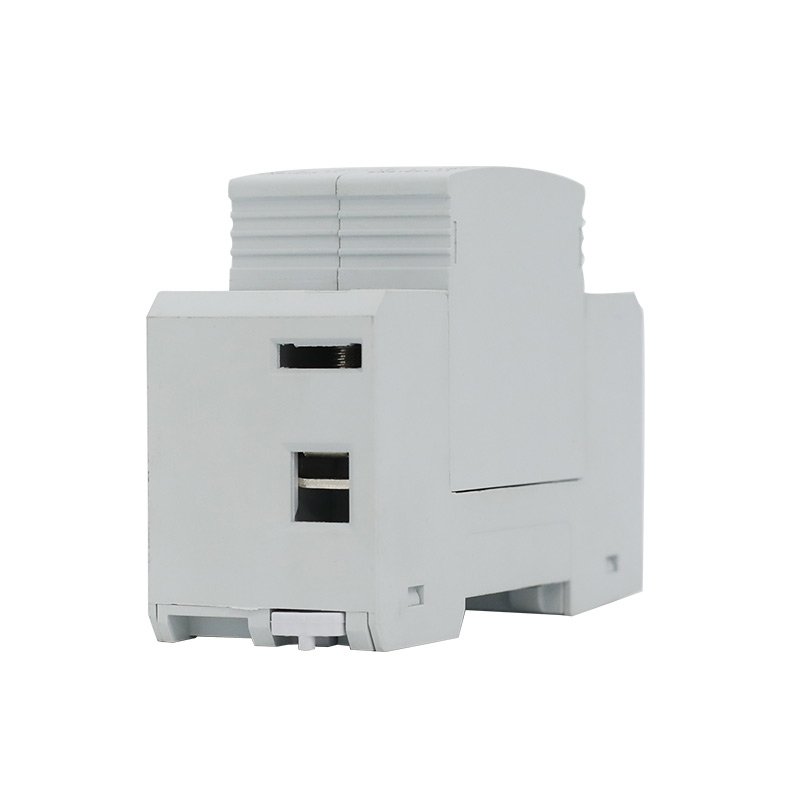

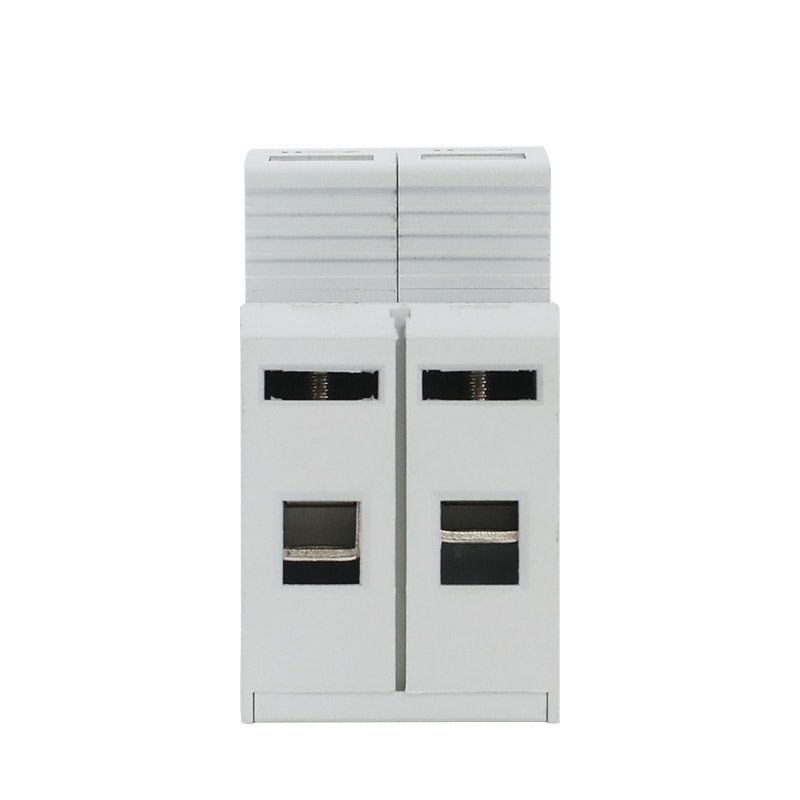

ZOII ZY2-L series concealed slot AC surge protective device adopts concealed slot separation design, the slot is hidden at the base edge, higher fitting degree, no exposed parts on appearance, more concise and beautiful overall. The product is plug-in modular structure, the module can be replaced separately for easy maintenance. Built-in thermal trip protection, cuts off on overheating, adopts standard MOV varistor chips, stable surge protection performance. All models are CE certified, fits standard 35mm DIN rail installation, available in 1P/2P/3P poles, 275V/385V AC voltage specifications, optional current ratings, positioned for high-end industrial and engineering scenarios, it is a quality choice for AC power distribution scenarios.

Q1: What is concealed slot design and what are its advantages?

A: The concealed slot design hides the connection slots at the edge of the base, creating a seamless appearance with no exposed parts. This design improves fitting accuracy, enhances dust protection, and gives distribution panels a cleaner, more professional look — ideal for high-end commercial and industrial projects where cabinet appearance matters.

Q2: How many color options are available for ZY2-L series?

A: The ZY2-L series offers 5 standard colors: white, orange-white, red, green, and full orange. Custom colors are available for large orders, allowing you to match your brand identity or project requirements.

Q3: Is the module replaceable without rewiring?

A: Yes. All ZY2-L series SPDs feature plug-in modular design. The module can be directly pulled out and replaced while the base remains mounted on the DIN rail — no rewiring needed, minimizing downtime.

Q4: What voltage ratings are available for ZY2-L AC?

A: ZY2-L AC series is available in 275V AC and 385V AC voltage ratings, suitable for standard single-phase and three-phase AC power distribution systems in residential, commercial, and industrial applications.

Please make sure to select the appropriate components according to your actual needs. Operating beyond the marked current and voltage ranges will render the product unusable.

Q5: What current ratings does ZY2-L AC offer?

A: ZY2-L AC series offers three current rating options: 20D (5kA/10kA), 25D (10kA/20kA), and 34S (20kA/40kA). 34S is the standard mainstream specification for most applications.
